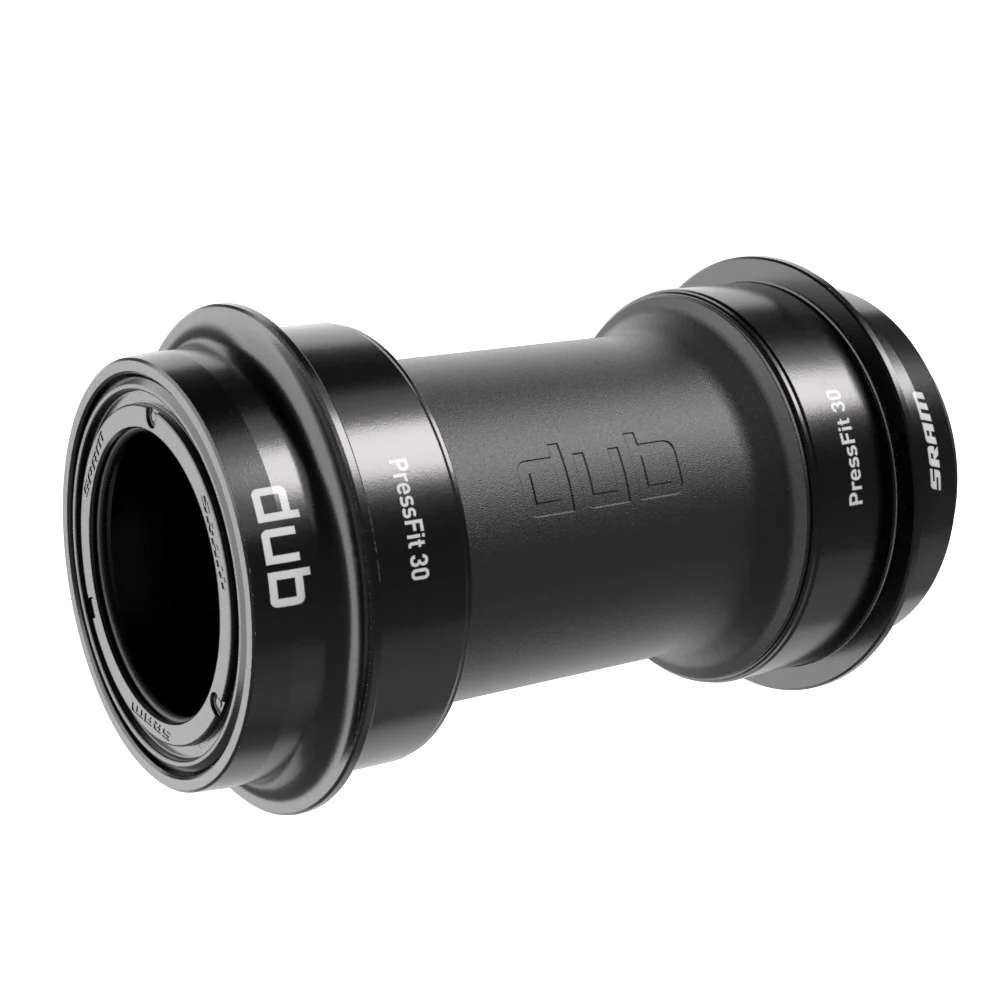

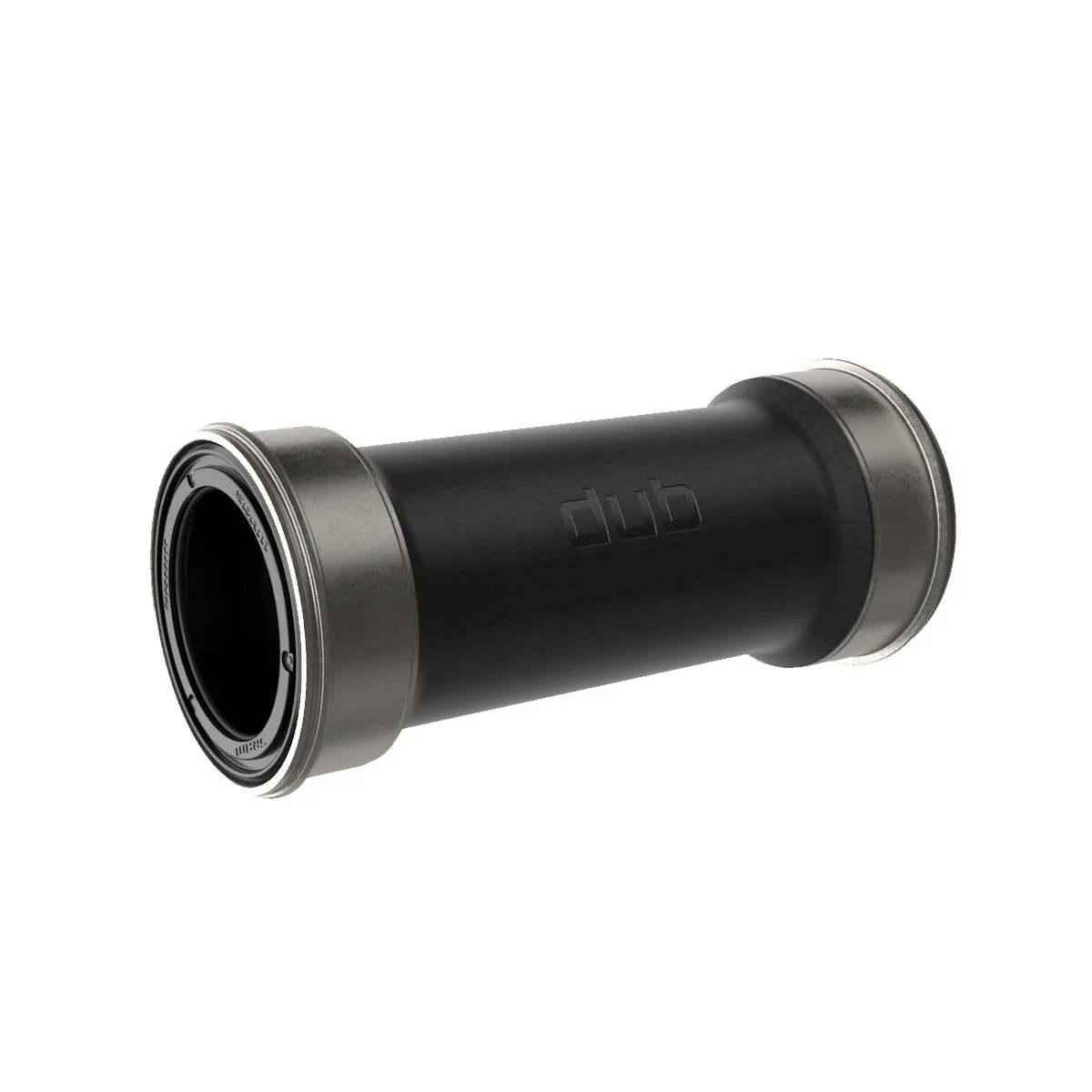

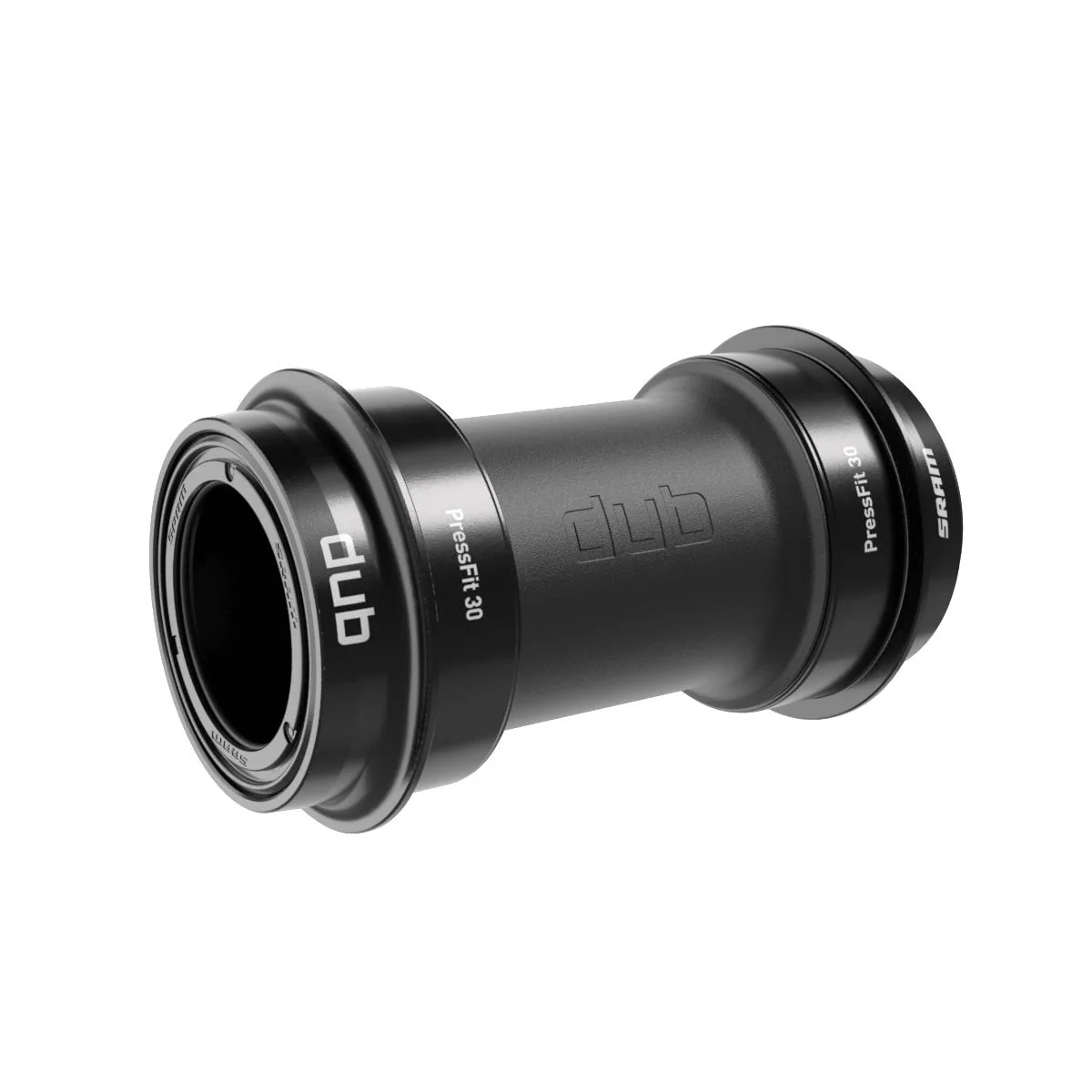

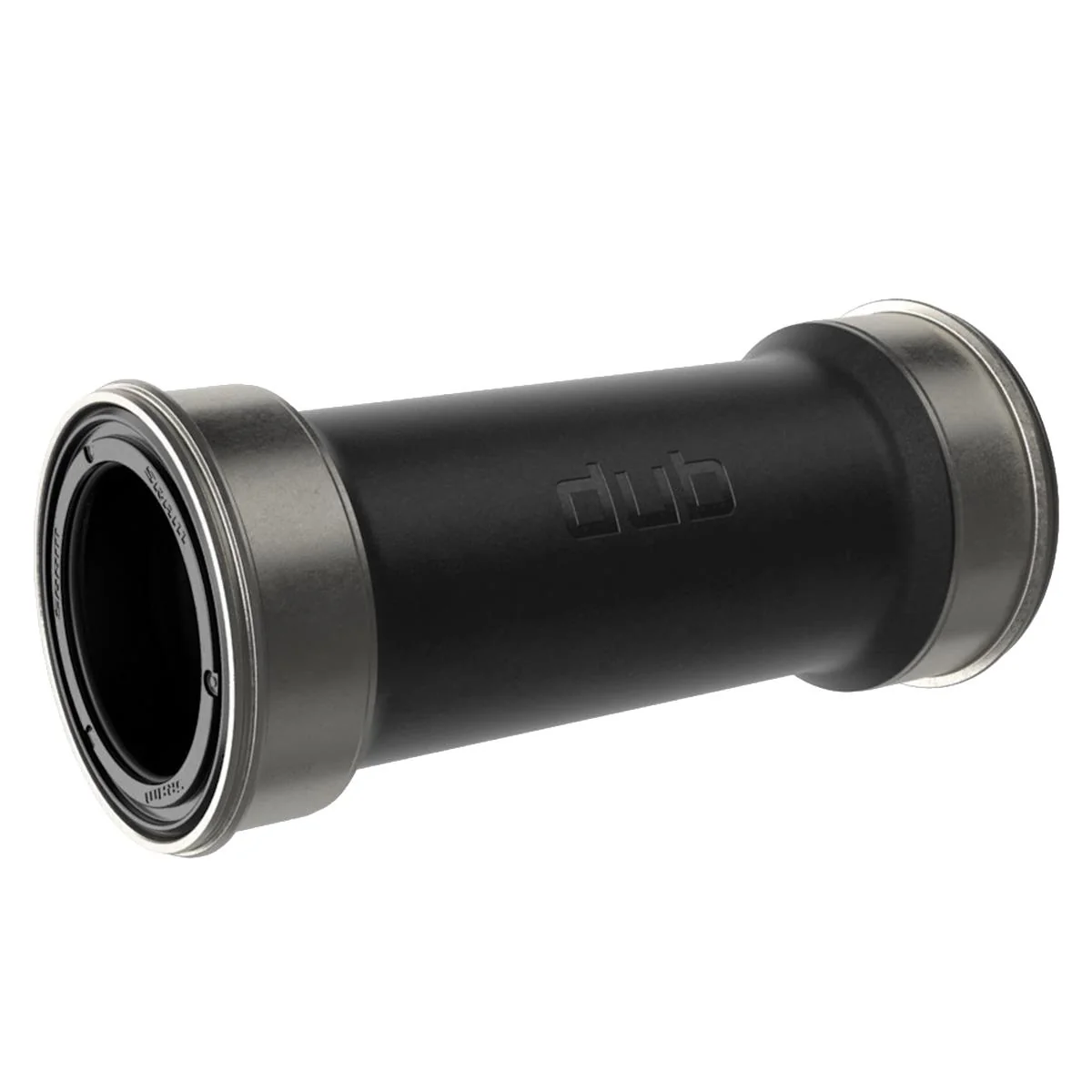

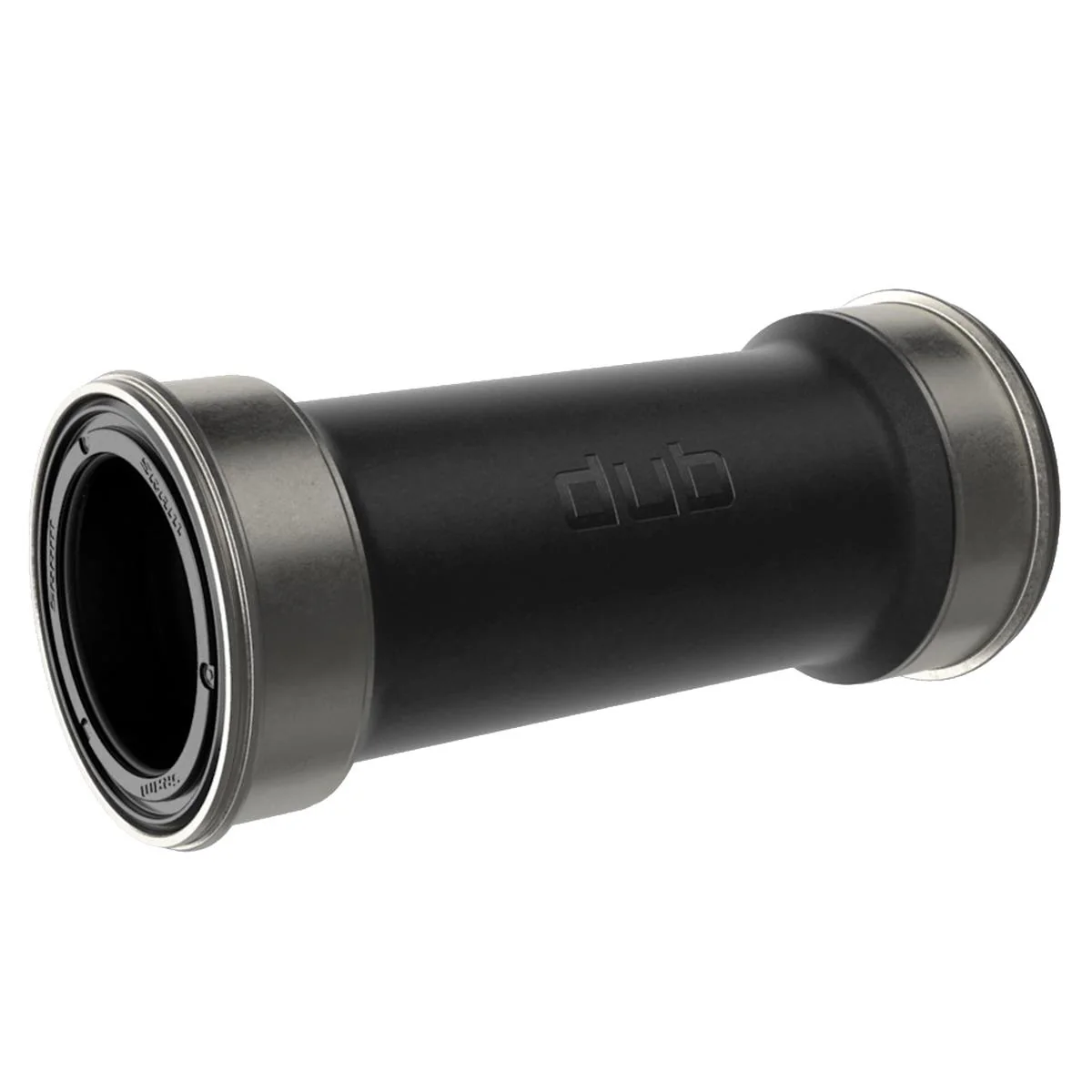

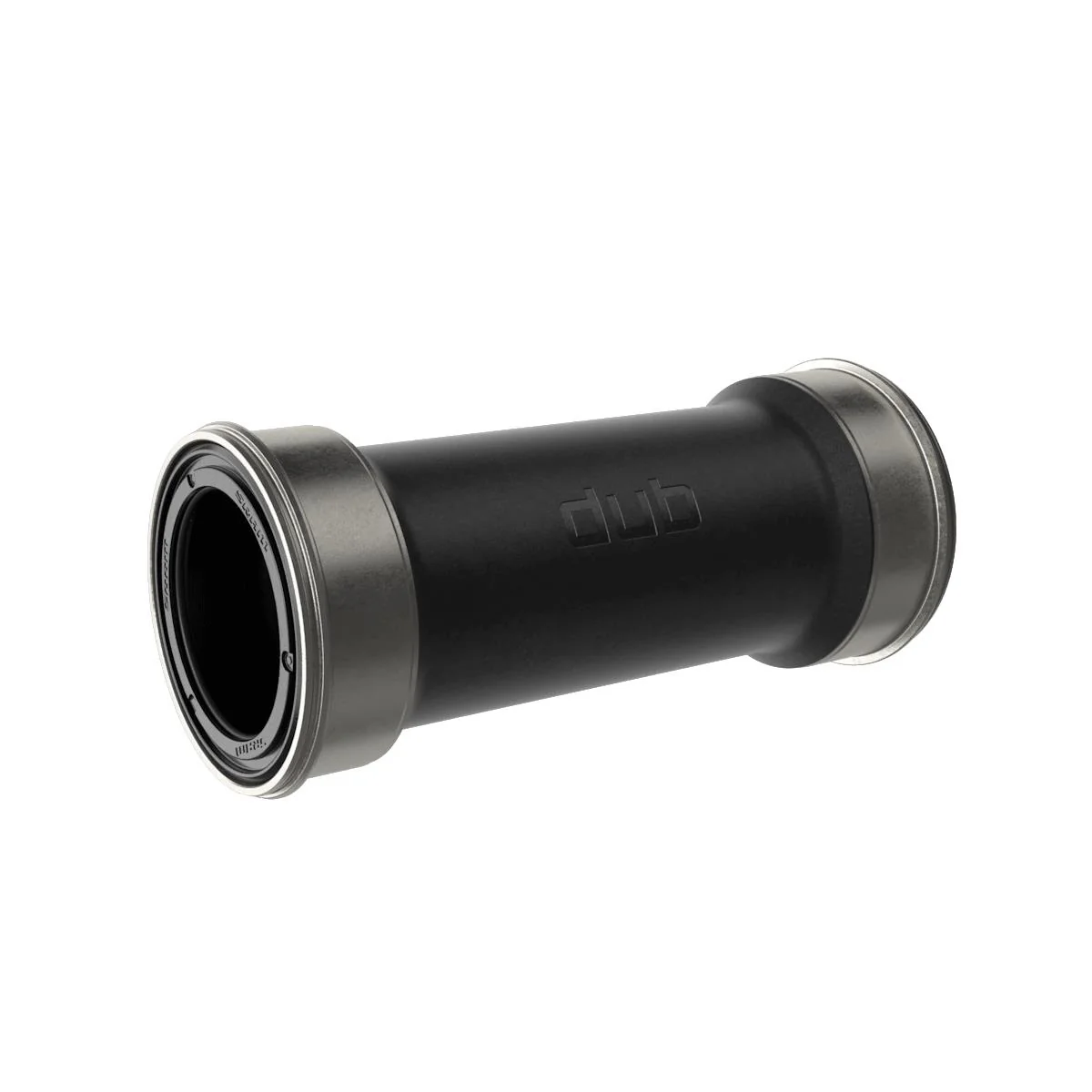

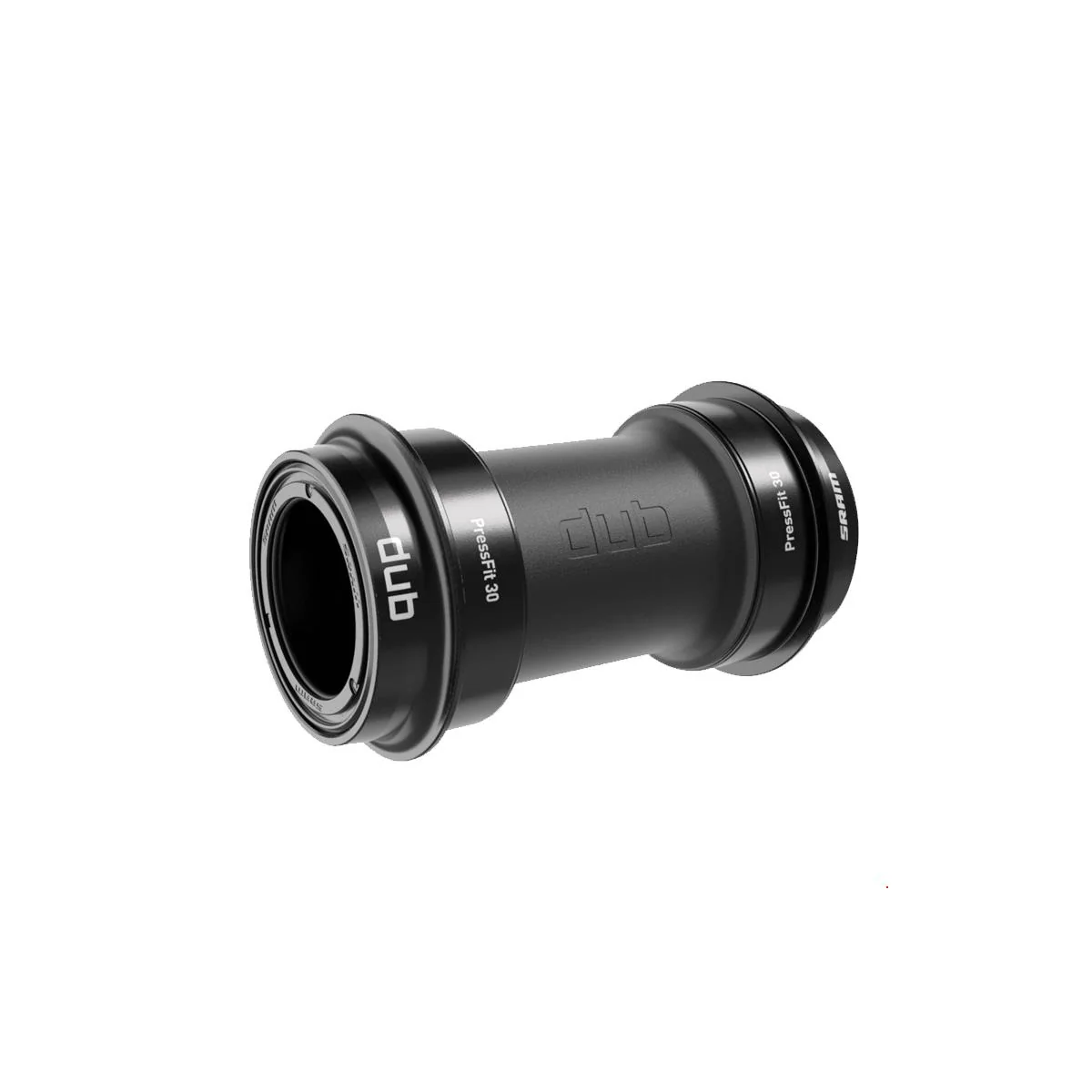

SRAM DUB PressFit Bottom Bracket

Sram:

SINGULAR FOCUS. BETTER SOLUTION.
The new SRAM DUB™ bottom bracket series has a simple job-connect your crankarms and protect the smooth, long-lasting application of power to your drivetrain. To allow that singular focus, we've engineered the DUB™ spindle to be the one true unifying component. One oversized spindle to work across every bottom bracket standard. For better crankarm compatibility. For better protection from the elements. For longer-lasting performance. To be stronger, smoother, simpler. Now, back to the ride.

THINGS TO REMEMBER
One oversized spindle to work across every bottom bracket standard.
Significantly lighter than PFGXP system
Easier installation by allowing you to press the bearing cups into the frame

FEATURES AND BENEFITS
Easy installation
Two fully sealed cartridge bearings
ISO 4210 compliant. See Declaration of Conformity for details.

SPECIFICATIONS
BB-frame interface PressFit (MTB/DH: 104.5mm), PressFit (MTB/DH: 107mm), PressFit (MTB: 121mm), PressFit (MTB: 89/92mm), PressFit (Road: 86.5mm)
Crank-BB interface DUB
Bearing type Standard
Spindle diameter DUB
Spindle length n/a
Chainline n/a
Support E-type FD n/a
Cup material Steel
