MTB Hopper Air Ramp

With the Air ramp, we start a new segment. This is our first ramp which is intended for Dirt jumps. It’s all about maximizing your time in the air! It is perfect for step-up (2-3 meters), hip jump, backflip, front flip, no hander, double backflip, etc.

Ideal for tricks that require a speed of 25 - 35 km/h. The geometry of the Air ramp is designed for height-oriented jumps but makes it possible to clear up to 6-meter gaps. It is recommended only for advanced riders.

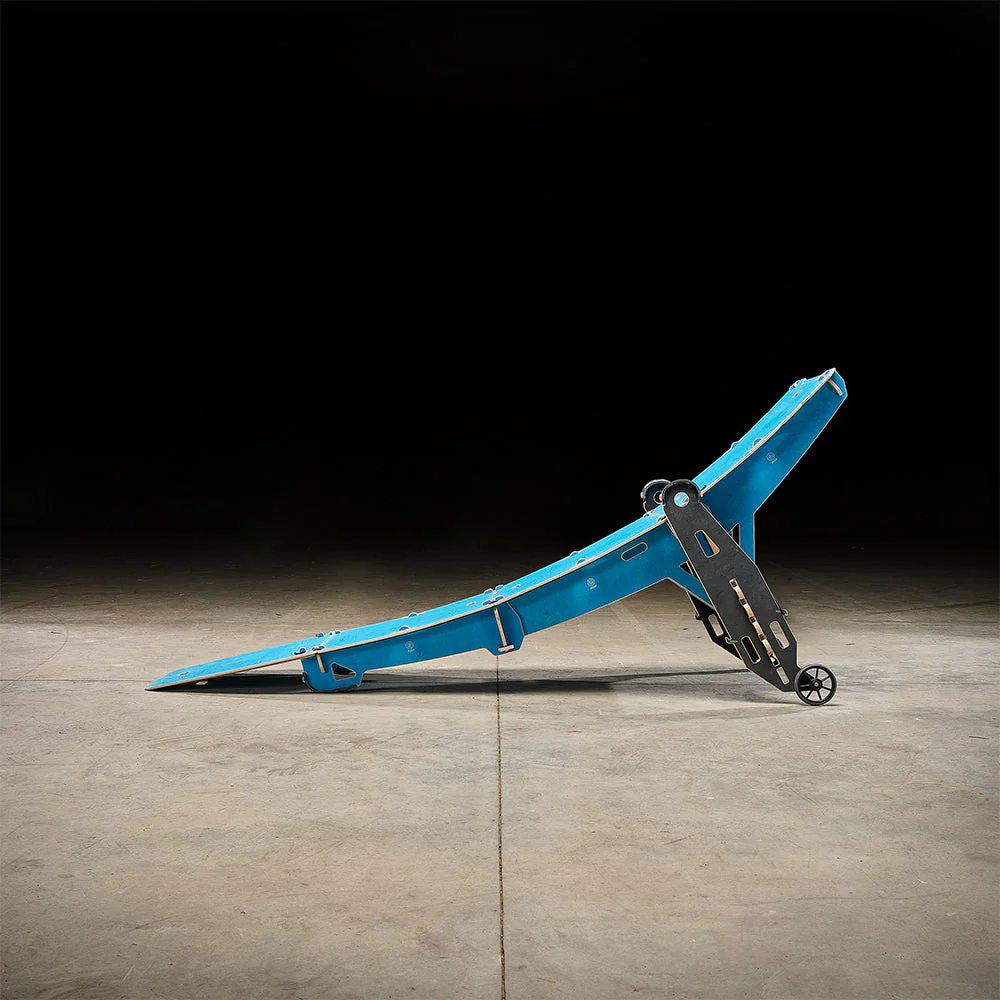

The geometry of the Air ramp is tall and aggressive. The Air ramp has a height adjustment amplitude - from 1370 mm to 1450 mm. Leg travel of 80 mm. The ramp has a wheel extension that allows you to move a ready-to-use ramp from one location to another without disassembling it.

Due to our revolutionary truss construction, the ramp is very stable and adaptive to any surface/terrain. It can be placed at various angles by regulating the length of each leg - possible to change the radius of the surface (surface radius from R 4000 mm).

The surface of the ramp is not suitable for small wheel sports. It can be used with dirt/slopestyle bikes, enduro, downhill, BMX, skis, snowboards, etc.

Assembly: 10 min
Weight limit: 150 kg
Ready to use ramp dimensions: 1370-1450 (height) x 730 (width) x 2600 mm (length)

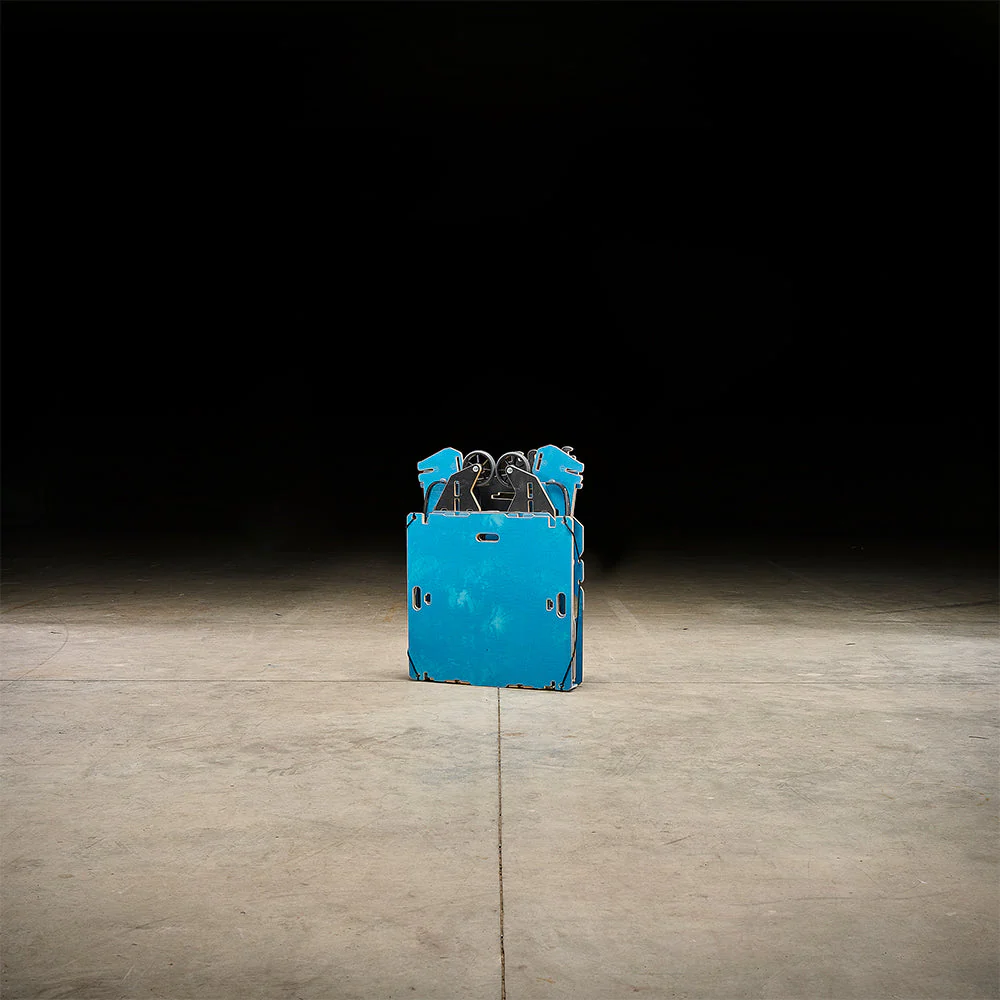

Briefcase dimensions: 1135 x 855 x 208 mm
Product weight (total): 30 kg
Wheel Extension weight: 5 kg

Packaging.
Ready-to-ship product dimensions (+ packaging): 1150 x 897 x 215 mm
Product weight (+ packaging): 31,5 kg
